Feature:
- Continuous discharge current specifically designed for a car alternator use: 110A
- Max discharge current: Peak current 2000A, with delay time for 10Ms.
- Floating Battery Balancer: smart cell balancer starts at/ over 3.55V, but it acts only on cells with volt variances, higher by 40mV than the lowest one. The bleeding current dissipates by from 40mA to 300mA,
- Mosfet Management: Sense circuit designed for a purpose to keeping Mosfets from all being burnt down..
- Sleep Mode: No current consumption. System shuts, showing 0 volt measured at terminals in 2 conditions. When a status of no load or with parasitic load less than 8-/+2A lasting for 22(in default) days, it will trip at any volt level. Wake up: When with a slight load, charging can wake it up as described in the specifications, or it will go to LVSER mode after the 22nd days.
- LVSER ( Low Voltage Start Energy Reserve): LVSER Mode trips at cell volt dropping down to 3.10V with a load in the car, less than 8-/+2A (in default), to break off lower current drains and reduce energy loss.Self-Wake up: for SB78o Model, LVSER Mode puts the system to work for 5 Seconds and goes to sleep for 300 seconds in cycles until UVP, or gets charged to release as described in the specifications.
- Sleep Mode and LVSER Mode Disable: Functions of both will self-disable once car alternator fails to charge, while it has a load greater than 8A-/+2.
- BEMF protection: The BMS has protection for itself conducting back electromotive forces from the load.

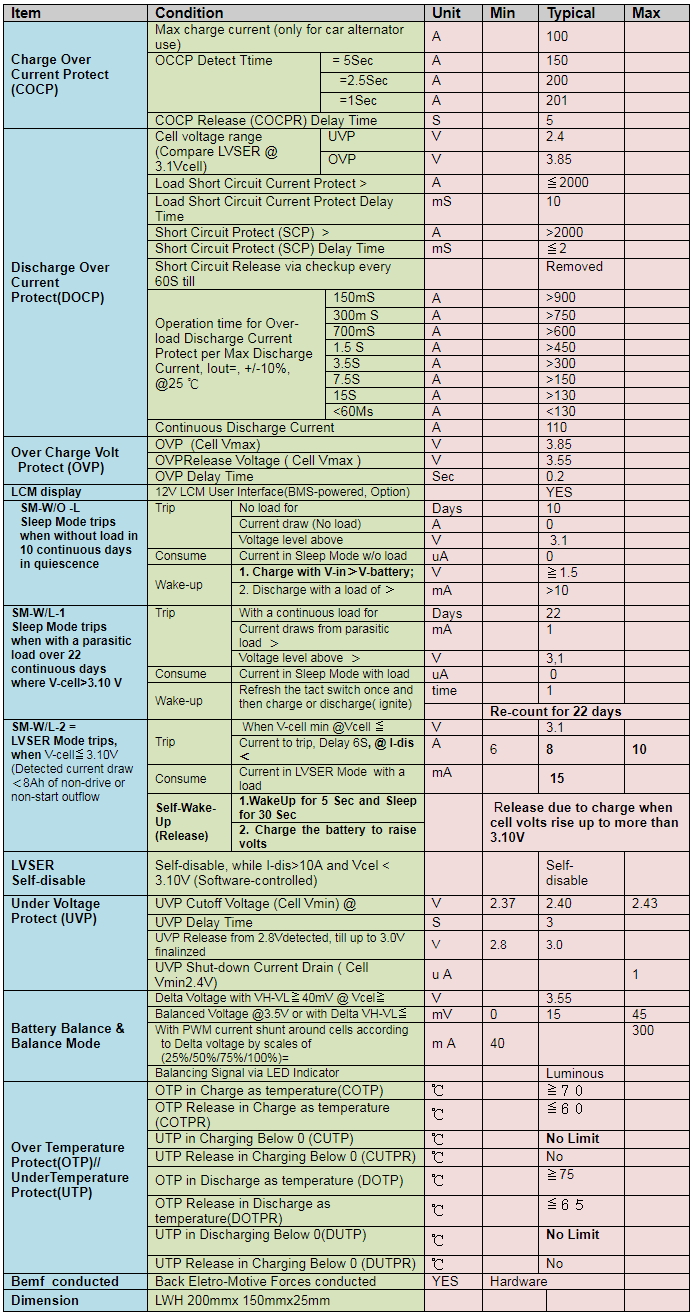

Key specification and electrical characteristics:

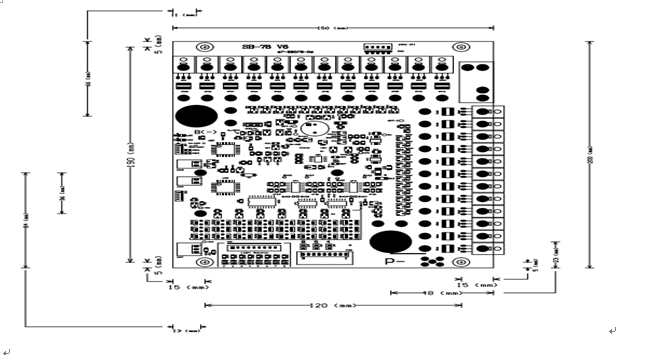

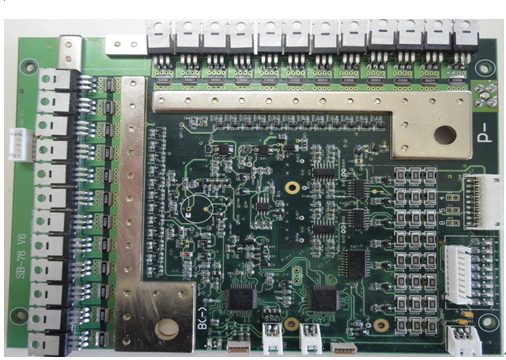

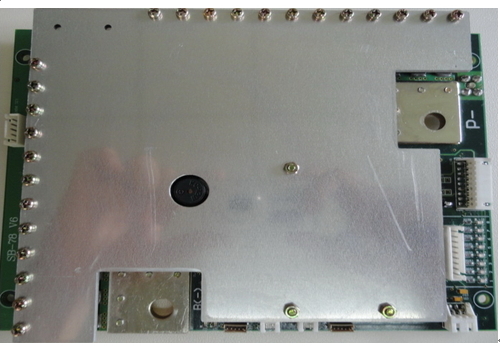

Physical Structure:

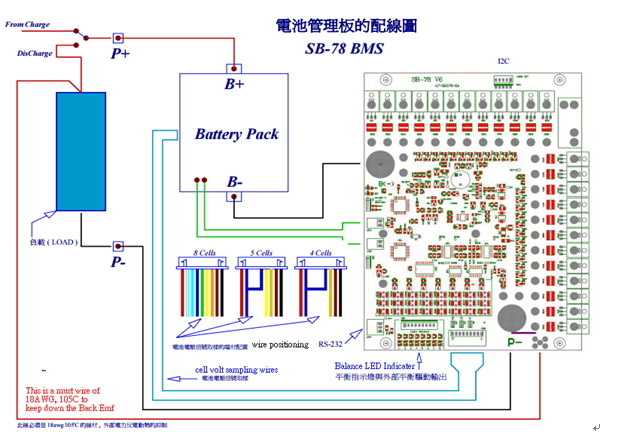

Wiring diagram:
