Features:
- With a communication port for SMBus interfacel via USB tool bridge to PC to gather battery information, helpful for engineering or R&M services.
- Monitoring battery SoC and SoH, such as amperes, volts, capacity; and protection status and cell balance, event records etc.
- Smart cell balance design.
- Electrical parameters are adjustable in default for customization, designed for 7S cells.

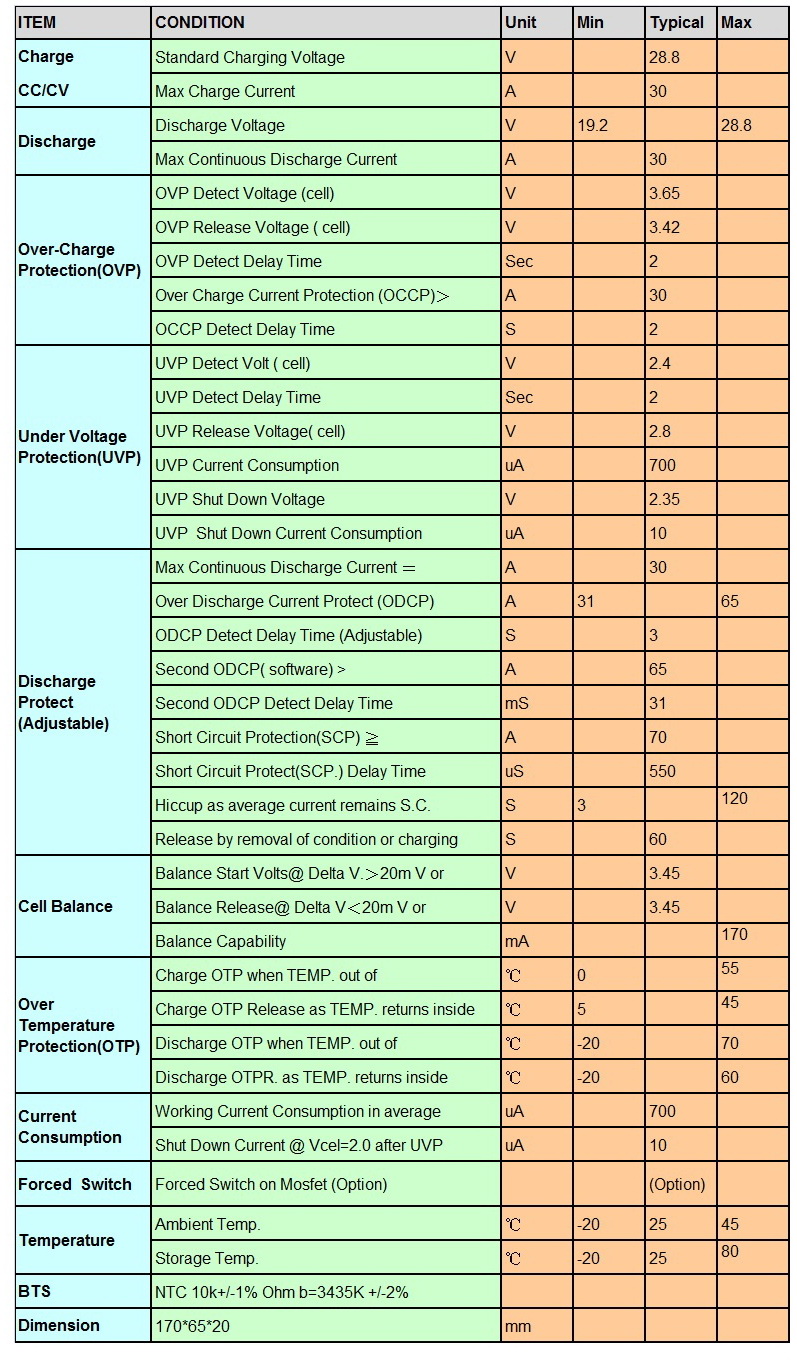

Specification:
Smart battery management of SMBus via USB bridge tool to PC.
Dimension:

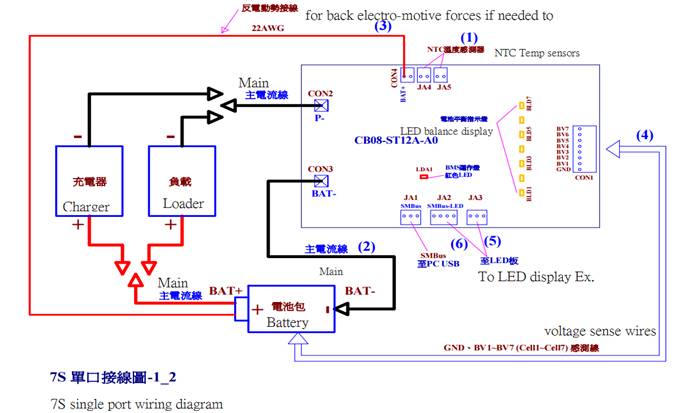

Wiring Diagram:
