Features:
- With a communication port for SMBus interface via USB tool bridge to PC to gather battery information, helpful for engineering or R&M services.
- Monitoring battery SoC and SoH, such as amperes, volts, capacity; temperature, protection status and cell balance, cycle life times etc.
- With circuitry of blocking back electromotive forces(BEMF), and filter circuitry against noises or interference.
- LED display to show battery capacity, based on Coulomb Counter and, to show protection occurrences.

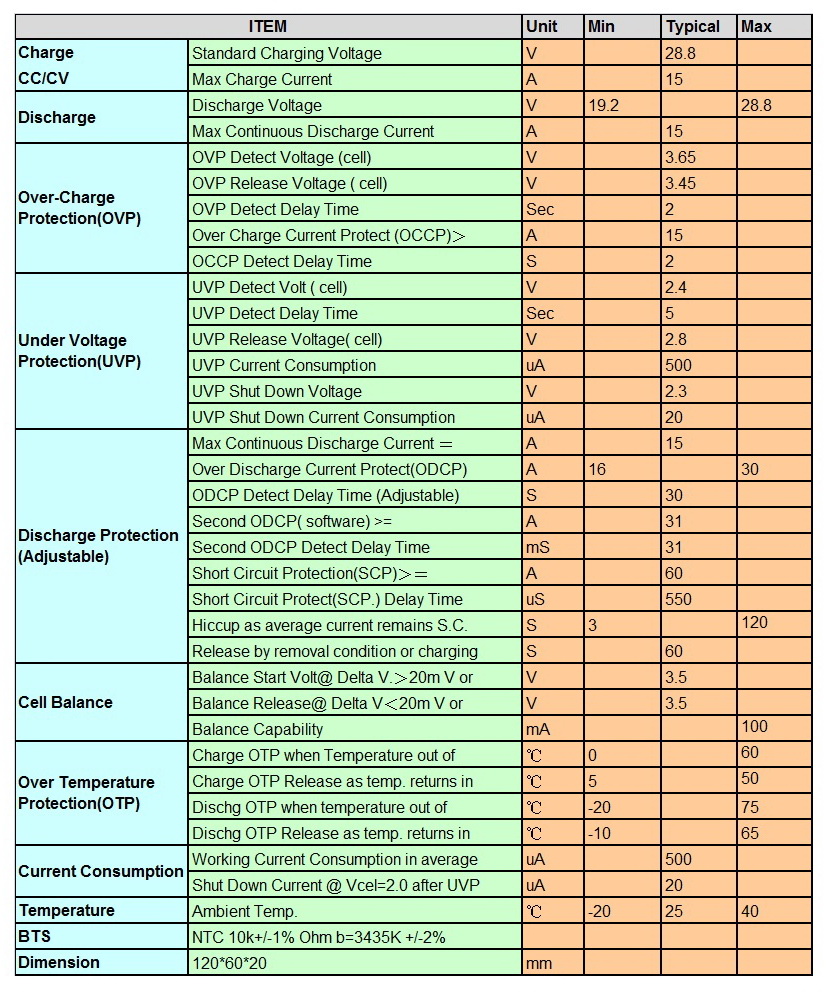

Specification:
LED Indicators (Option)
Battery SoC.
Event warnings: for OVP/OCP/OTP/Short-circuit( via SMBus interface, Option)

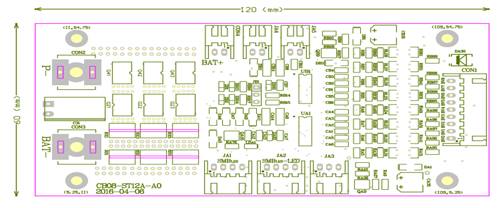

Dimension:
Wiring Diagram:
